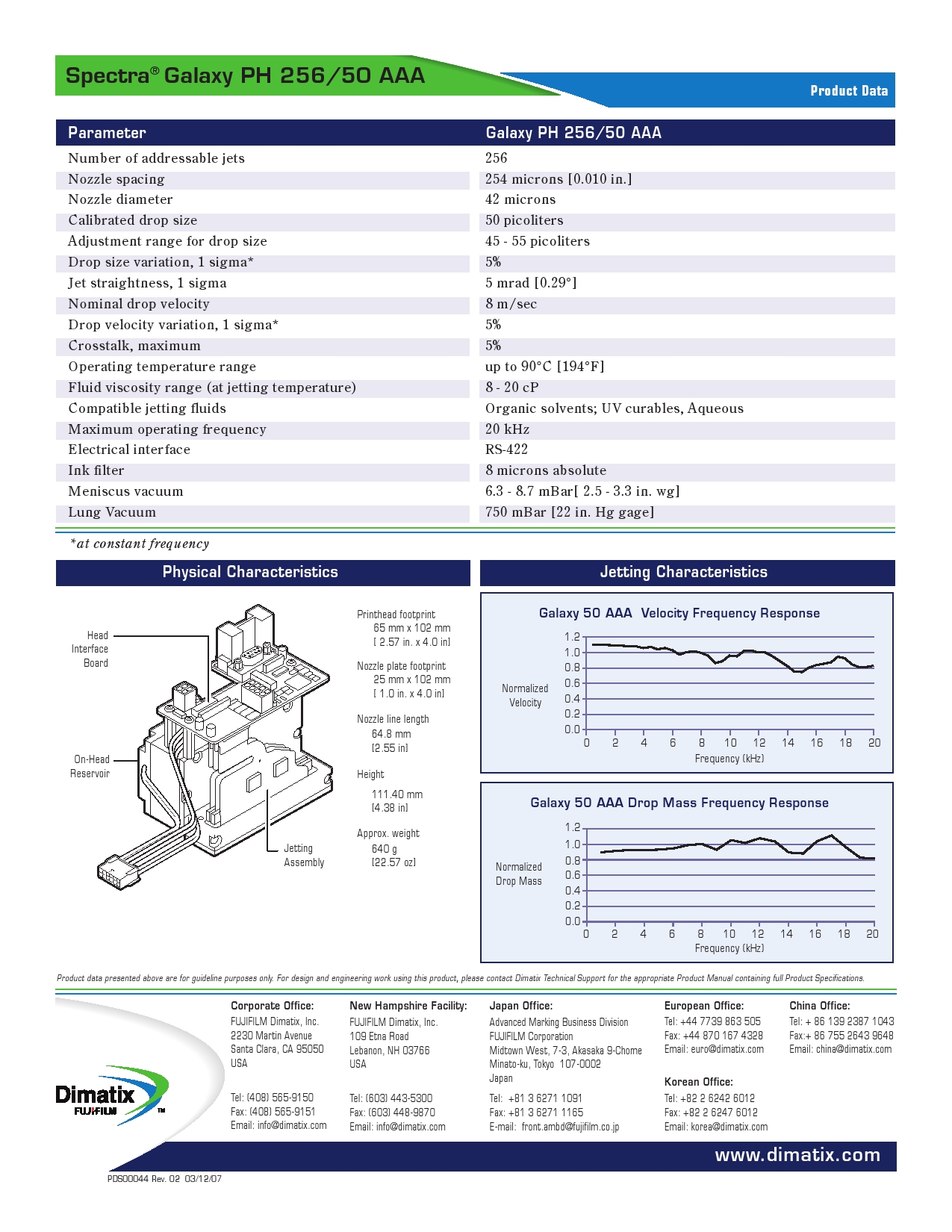

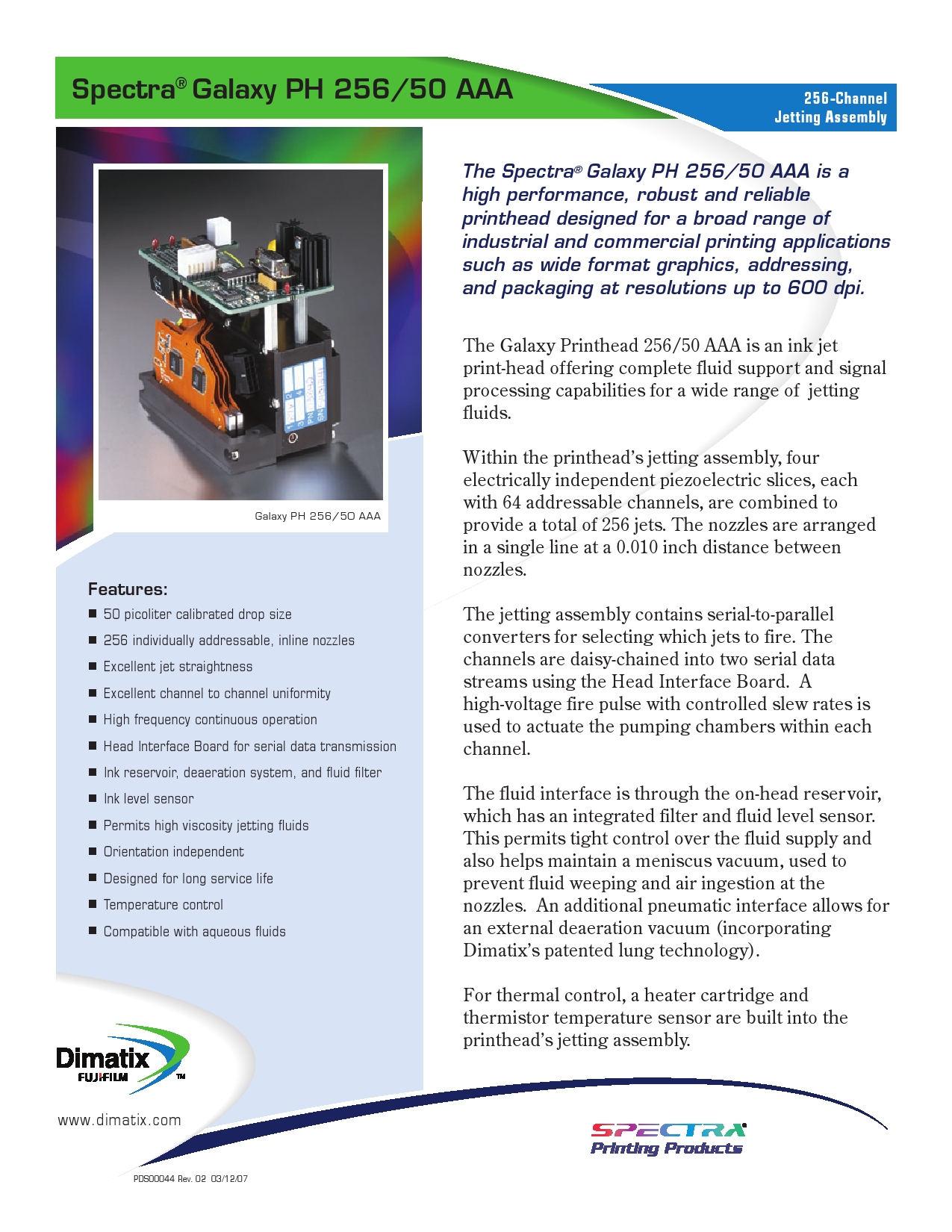

Spectra Galaxy Printhead

www.dimatix.com Galaxy JA 256/80 AAA PDS00043 Rev. 02 04/05/07 The Spectra® Galaxy JA 256/80 AAA is a high performance, robust and reliable jetting assembly designed for a broad range of industrial and commercial printing applications such as wide format graphics, addressing and packaging at resolutions up to 450 dpi. The Galaxy JA 256/80 AAA is a compact ink jet jetting assembly designed specifically for applications requiring multiple printheads packed tightly together. General compatibility with a wide range of fluids makes the Galaxy JA 256/80 AAA highly versatile. Four electrically independent piezoelectric slices, each with 64 addressable channels, are combined to provide a total of 256 jets. The nozzles are arranged in a single line, at a native 0.010 inch distance between nozzles. The fluid interface and electrical connection are at the top of the jetting assembly and several mounting configurations are possible. This arrangement permits extremely tight packing in the print process direction. The dual ported fluid interface facilitates flushing for quick change-overs and for displacing drying fluids with inert fluids during periods of non-use. This jetting assembly contains serial-to-parallel converters for selecting which jets to fire; all jets can be fired simultaneously or individually. By using an optional Head Interface Board, image data can be daisy-chained into one serial stream to reduce the data interface hardware requirements. A high voltage fire pulse with controlled slew rates is used to actuate the pumping chambers within each channel. Optional temperature control components are available for precise control of fluid viscosity. Optional deaeration hardware can be provided. Features: 80 picoliter calibrated drop size 256 individually addressable, inline nozzles Excellent jet straightness Excellent channel to channel uniformity High frequency continuous operation Orientation independent Designed for long service life Operation up to 90ºC [194°F] Permits high viscosity jetting fluids Dual ported for ease of flushing Optional temperature control Compatible with aqueous fluids Spectra® Galaxy JA 256/80 AAA 256-Channel Jetting Assembly www.dimatix.com Galaxy JA 256/80 AAA PDS00043 Rev. 02 04/05/07 The Spectra® Galaxy JA 256/80 AAA is a high performance, robust and reliable jetting assembly designed for a broad range of industrial and commercial printing applications such as wide format graphics, addressing and packaging at resolutions up to 450 dpi. The Galaxy JA 256/80 AAA is a compact ink jet jetting assembly designed specifically for applications requiring multiple printheads packed tightly together. General compatibility with a wide range of fluids makes the Galaxy JA 256/80 AAA highly versatile. Four electrically independent piezoelectric slices, each with 64 addressable channels, are combined to provide a total of 256 jets. The nozzles are arranged in a single line, at a native 0.010 inch distance between nozzles. The fluid interface and electrical connection are at the top of the jetting assembly and several mounting configurations are possible. This arrangement permits extremely tight packing in the print process direction. The dual ported fluid interface facilitates flushing for quick change-overs and for displacing drying fluids with inert fluids during periods of non-use. This jetting assembly contains serial-to-parallel converters for selecting which jets to fire; all jets can be fired simultaneously or individually. By using an optional Head Interface Board, image data can be daisy-chained into one serial stream to reduce the data interface hardware requirements. A high voltage fire pulse with controlled slew rates is used to actuate the pumping chambers within each channel. Optional temperature control components are available for precise control of fluid viscosity. Optional deaeration hardware can be provided. Features: 80 picoliter calibrated drop size 256 individually addressable, inline nozzles Excellent jet straightness Excellent channel to channel uniformity High frequency continuous operation Orientation independent Designed for long service life Operation up to 90ºC [194°F] Permits high viscosity jetting fluids Dual ported for ease of flushing Optional temperature control Compatible with aqueous fluids Spectra® Galaxy JA 256/80 AAA 256-Channel Jetting Assembly Product DataSpectra® Galaxy JA 256/80 AAA Product DataSpectra® Galaxy JA 256/80 AAA Parameter Galaxy JA 256/80 AAA Number of addressable jets 256 Nozzle spacing 254 microns [0.010 in.] Nozzle diameter 52 microns Calibrated drop size 80 picoliters Adjustment range for drop size 75 - 85 picoliters Drop size variation, 1 sigma* 5% Jet Straightness, 1 sigma* 5 mrad [0.29°] Nominal drop velocity 8 m/sec Drop velocity variation, 1 sigma* 5% Crosstalk, maximum 5% Operating temperature range up to 90°C [194°F] Fluid viscosity range (at jetting temperature) 8 - 20 cP Compatible jetting fluids Organic solvents; UV curables, Aqueous Maximum operating frequency 20 kHz *at constant frequency 102mm [4.0 in.] 102mm [4.00 in.] 102mm [4.00 in.] Jet 256Jet 1 Physical Dimensions Jetting Characteristics 25mm [1.0 in.] Approximate weight 113 grams [3.98 oz] Nozzle line length 64.8mm [2.55 in.] Normalized Velocity Frequency (kHz) Galaxy 80 AAA Velocity Frequency Response 0 2 4 6 8 10 12 14 16 18 0.0 0.2 0.4 0.6 0.8 1.2 1.0 20 Normalized Drop Mass Frequency (kHz) Galaxy 80 AAA Drop Mass Frequency Response 1.0 1.2 0.8 0.6 0.4 0.2 0.0 0 2 4 6 8 10 14 16 1812 20 27mm [1.05 in.] Product data presented above are for guideline purposes only. For design and engineering work using this product, please contact Dimatix Technical Support for the appropriate Product Manual containing full Product Specifications. PDS00043 Rev. 02 04/05/07 Corporate Office: New Hampshire Facility: Japan Office: FUJIFILM Dimatix, Inc. FUJIFILM Dimatix, Inc. Advanced Marking Business Division 2230 Martin Avenue 109 Etna Road FUJIFILM Corporation Santa Clara, CA 95050 Lebanon, NH 03766 Midtown West, 7-3, Akasaka 9-Chome USA USA Minato-ku, Tokyo 107-0002 Japan Tel: (408) 565-9150 Tel: (603) 443-5300 Tel: +81 3 6271 1091 Fax: (408) 565-9151 Fax: (603) 448-9870 Fax: +81 3 6271 1165 Email: info@dimatix.com Email: info@dimatix.com E-mail: front.ambd@fujifilm.co.jp European Office: China Office: Tel: +44 7739 863 505 Email: china@dimatix.com Fax: +44 870 167 4328 Email: euro@dimatix.com Korean Office: Tel: +82 2 6242 6012 Fax: +82 2 6247 6012 Email: korea@dimatix.com www.dimatix.com
