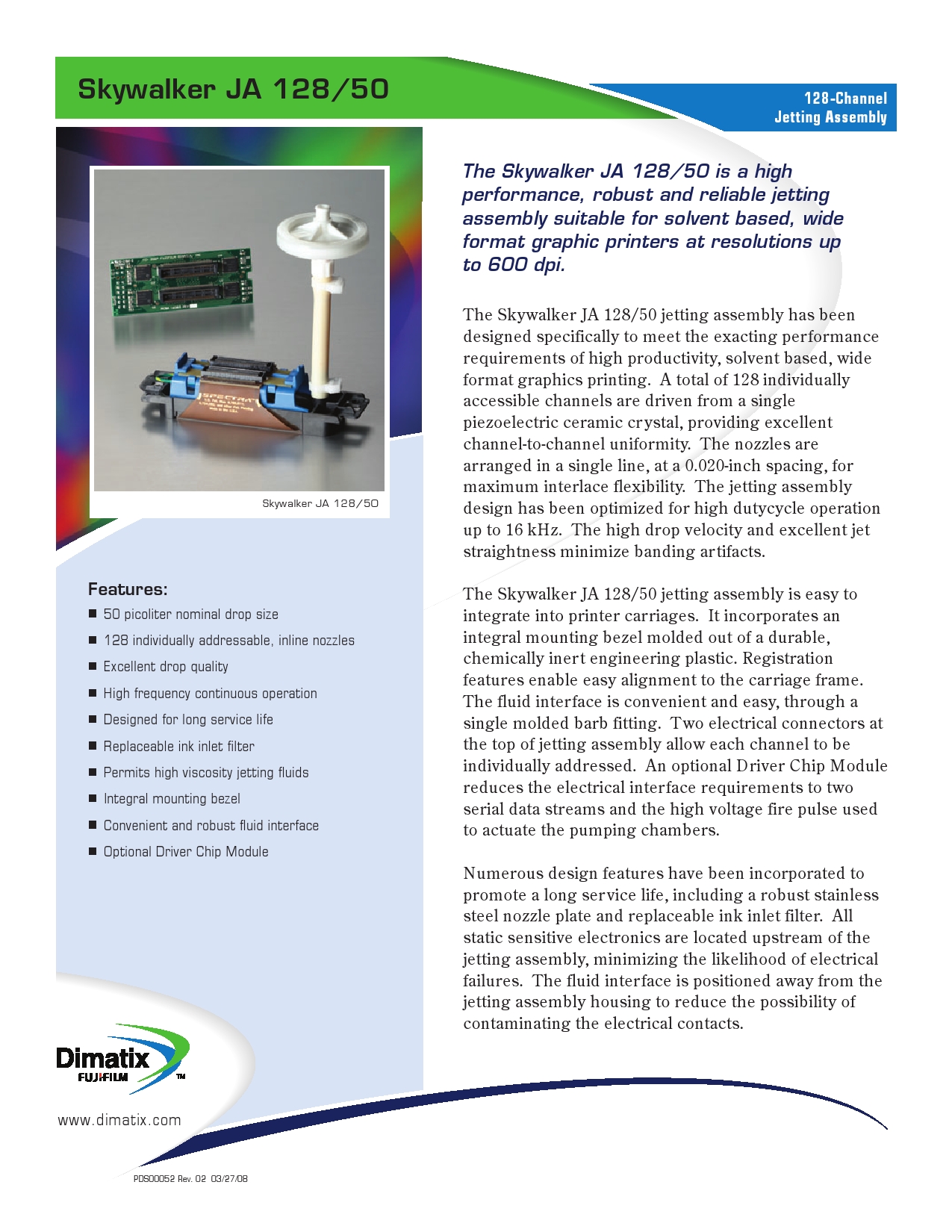

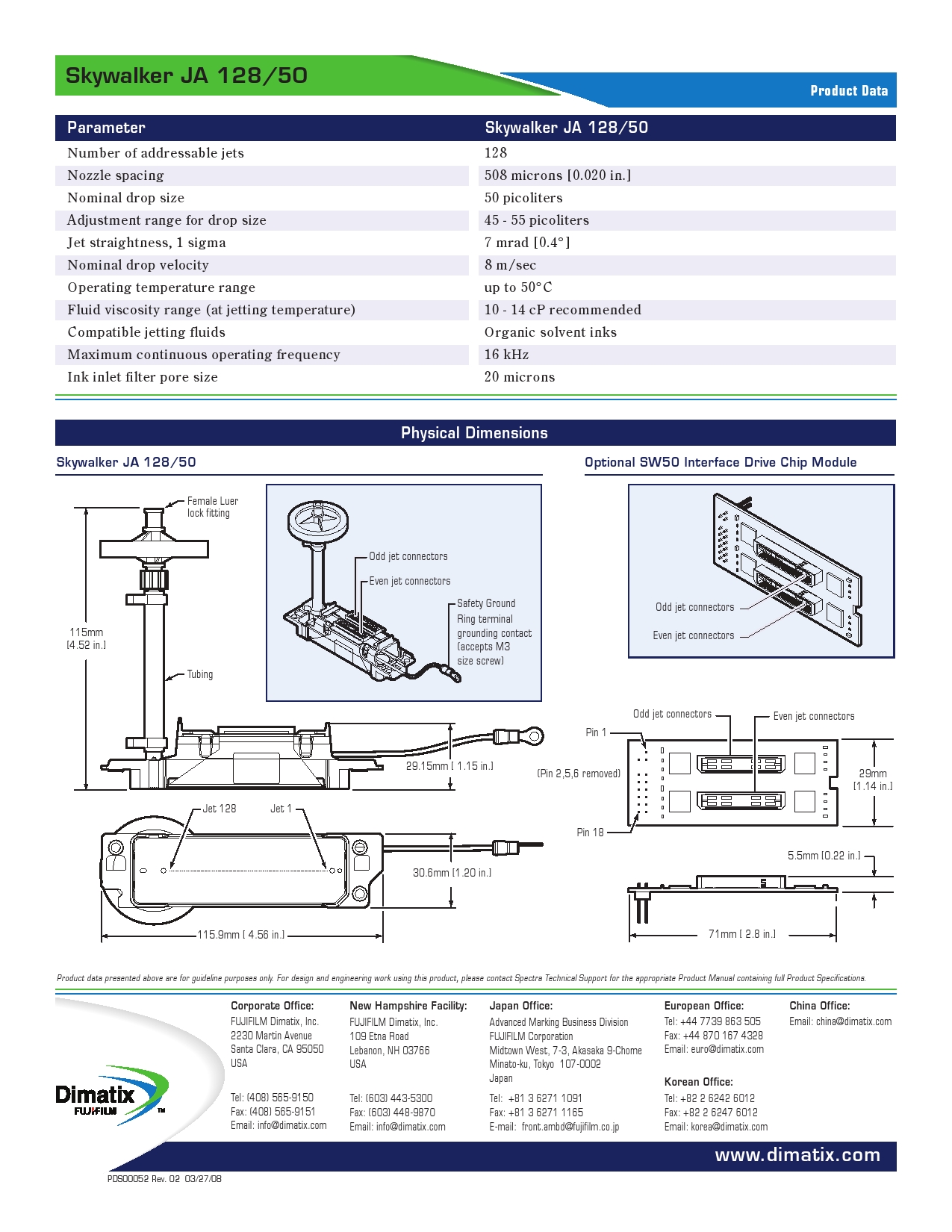

www.dimatix.com PDS00052 Rev. 02 03/27/08 The Skywalker JA 128/50 is a high performance, robust and reliable jetting assembly suitable for solvent based, wide format graphic printers at resolutions up to 600 dpi. The Skywalker JA 128/50 jetting assembly has been designed specifically to meet the exacting performance requirements of high productivity, solvent based, wide format graphics printing. A total of 128 individually accessible channels are driven from a single piezoelectric ceramic crystal, providing excellent channel-to-channel uniformity. The nozzles are arranged in a single line, at a 0.020-inch spacing, for maximum interlace flexibility. The jetting assembly design has been optimized for high dutycycle operation up to 16 kHz. The high drop velocity and excellent jet straightness minimize banding artifacts. The Skywalker JA 128/50 jetting assembly is easy to integrate into printer carriages. It incorporates an integral mounting bezel molded out of a durable, chemically inert engineering plastic. Registration features enable easy alignment to the carriage frame. The fluid interface is convenient and easy, through a single molded barb fitting. Two electrical connectors at the top of jetting assembly allow each channel to be individually addressed. An optional Driver Chip Module reduces the electrical interface requirements to two serial data streams and the high voltage fire pulse used to actuate the pumping chambers. Numerous design features have been incorporated to promote a long service life, including a robust stainless steel nozzle plate and replaceable ink inlet filter. All static sensitive electronics are located upstream of the jetting assembly, minimizing the likelihood of electrical failures. The fluid interface is positioned away from the jetting assembly housing to reduce the possibility of contaminating the electrical contacts. Features: 50 picoliter nominal drop size 128 individually addressable, inline nozzles Excellent drop quality High frequency continuous operation Designed for long service life Replaceable ink inlet filter Permits high viscosity jetting fluids Integral mounting bezel Convenient and robust fluid interface Optional Driver Chip Module Skywalker JA 128/50 Skywalker JA 128/50 128-Channel Jetting Assembly www.dimatix.com PDS00052 Rev. 02 03/27/08 The Skywalker JA 128/50 is a high performance, robust and reliable jetting assembly suitable for solvent based, wide format graphic printers at resolutions up to 600 dpi. The Skywalker JA 128/50 jetting assembly has been designed specifically to meet the exacting performance requirements of high productivity, solvent based, wide format graphics printing. A total of 128 individually accessible channels are driven from a single piezoelectric ceramic crystal, providing excellent channel-to-channel uniformity. The nozzles are arranged in a single line, at a 0.020-inch spacing, for maximum interlace flexibility. The jetting assembly design has been optimized for high dutycycle operation up to 16 kHz. The high drop velocity and excellent jet straightness minimize banding artifacts. The Skywalker JA 128/50 jetting assembly is easy to integrate into printer carriages. It incorporates an integral mounting bezel molded out of a durable, chemically inert engineering plastic. Registration features enable easy alignment to the carriage frame. The fluid interface is convenient and easy, through a single molded barb fitting. Two electrical connectors at the top of jetting assembly allow each channel to be individually addressed. An optional Driver Chip Module reduces the electrical interface requirements to two serial data streams and the high voltage fire pulse used to actuate the pumping chambers. Numerous design features have been incorporated to promote a long service life, including a robust stainless steel nozzle plate and replaceable ink inlet filter. All static sensitive electronics are located upstream of the jetting assembly, minimizing the likelihood of electrical failures. The fluid interface is positioned away from the jetting assembly housing to reduce the possibility of contaminating the electrical contacts. Features: 50 picoliter nominal drop size 128 individually addressable, inline nozzles Excellent drop quality High frequency continuous operation Designed for long service life Replaceable ink inlet filter Permits high viscosity jetting fluids Integral mounting bezel Convenient and robust fluid interface Optional Driver Chip Module Skywalker JA 128/50 Skywalker JA 128/50 128-Channel Jetting Assembly  Product data presented above are for guideline purposes only. For design and engineering work using this product, please contact Spectra Technical Support for the appropriate Product Manual containing full Product Specifications. www.dimatix.com Advanced Marking Business Division FUJIFILM Corporation Midtown West, 7-3, Akasaka 9-Chome Minato-ku, Tokyo 107-0002 Japan Tel: +81 3 6271 1091 Fax: +81 3 6271 1165 E-mail: front.ambd@fujifilm.co.jp Tel: +44 7739 863 505 Fax: +44 870 167 4328 Email: euro@dimatix.com FUJIFILM Dimatix, Inc. 109 Etna Road Lebanon, NH 03766 USA Tel: (603) 443-5300 Fax: (603) 448-9870 Email: info@dimatix.com FUJIFILM Dimatix, Inc. 2230 Martin Avenue Santa Clara, CA 95050 USA Tel: (408) 565-9150 Fax: (408) 565-9151 Email: info@dimatix.com Email: china@dimatix.com Korean Office: Tel: +82 2 6242 6012 Fax: +82 2 6247 6012 Email: korea@dimatix.com Corporate Office: New Hampshire Facility: Japan Office: European Office: China Office: Skywalker JA 128/50 Optional SW50 Interface Drive Chip Module Even jet connectors Odd jet connectors Even jet connectors Odd jet connectors Safety Ground Ring terminal grounding contact (accepts M3 size screw) Jet 128 Jet 1 29.15mm [ 1.15 in.] 30.6mm [1.20 in.] 115.9mm [ 4.56 in.] Tubing Female Luer lock fitting Pin 1 (Pin 2,5,6 removed) Pin 18 115mm [4.52 in.] 71mm [ 2.8 in.] 5.5mm [0.22 in.] Odd jet connectors Even jet connectors 29mm [1.14 in.] Parameter Skywalker JA 128/50 Physical Dimensions Number of addressable jets Nozzle spacing Nominal drop size Adjustment range for drop size Jet straightness, 1 sigma Nominal drop velocity Operating temperature range Fluid viscosity range (at jetting temperature) Compatible jetting fluids Maximum continuous operating frequency Ink inlet filter pore size 128 508 microns [0.020 in.] 50 picoliters 45 - 55 picoliters 7 mrad [0.4°] 8 m/sec up to 50°C 10 - 14 cP recommended Organic solvent inks 16 kHz 20 microns Product Data Skywalker JA 128/50 PDS00052 Rev. 02 03/27/08
